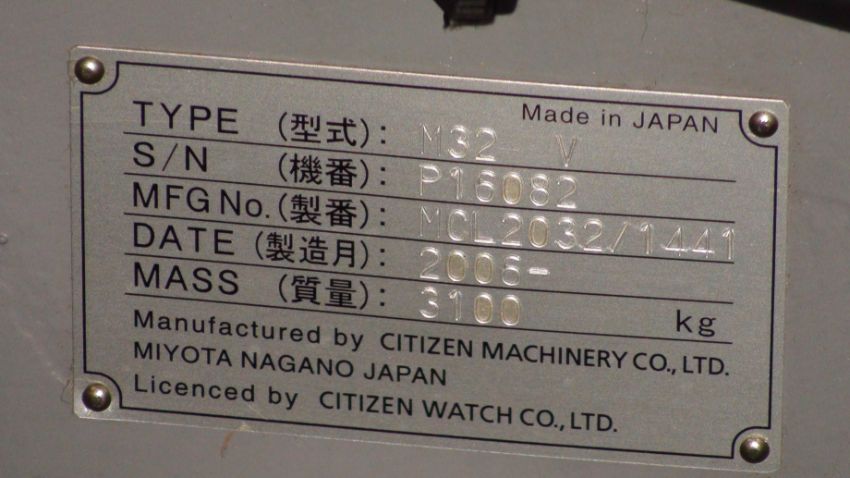

2007 Citizen Cincom M32V High Level Swiss Automatic Turning Center, S/N P16082, MFG No. MCL2032 /

Please register now so you are approved to bid when auction starts.

It is now possible to bid at this auction.

It is no longer possible to bid at this auction.

You are now approved to bid at this auction.

You have successfully registered for this auction, pending approval to bid. Please check your email for further information.

Please contact the auctioneer for more information.

We are always adding new lots, use search to find similar items.

To be sure to win, come back before the lot closes or increase your maximum bid.

For a chance of winning, increase your maximum bid.

Another bidder has already bid this amount. For a chance of winning, increase your maximum bid.

Congratulations!

You are the winning bidder on this lot.

Unfortunately you have missed out on this lot.

Please refresh your page to see current lot status.

Please contact customer services for more help.

Your bid has been declined by the auctioneer, please contact customer services for more information.

Please check your email account for more details.

Please contact the auctioneer

Price of this lot has not been published

Quantity

220,000 USD

Your maximum bid

USD

Estimate

Timed auction

Lot location

Clairton, Pennsylvania

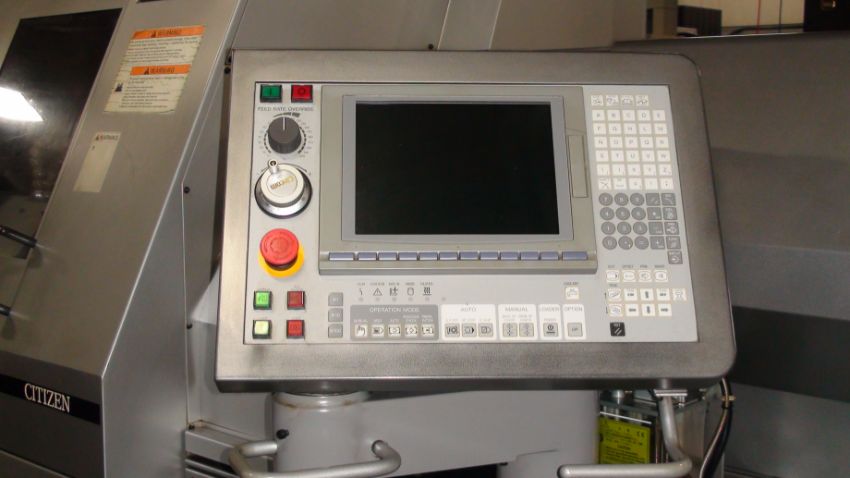

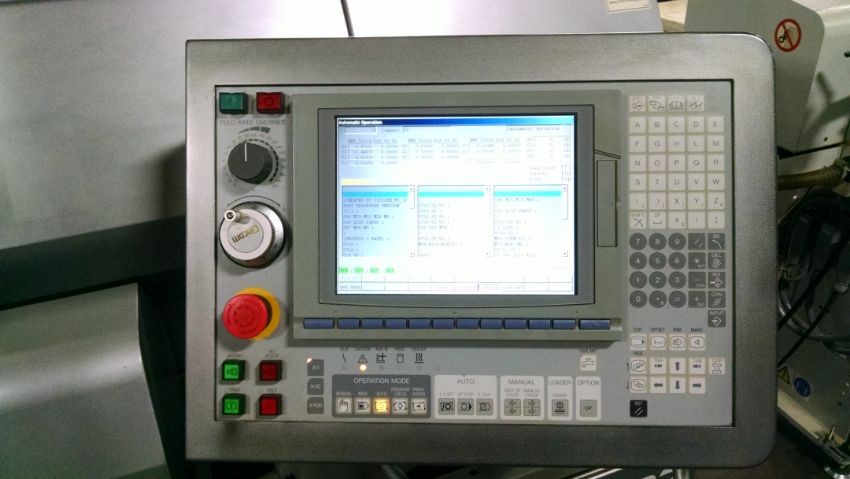

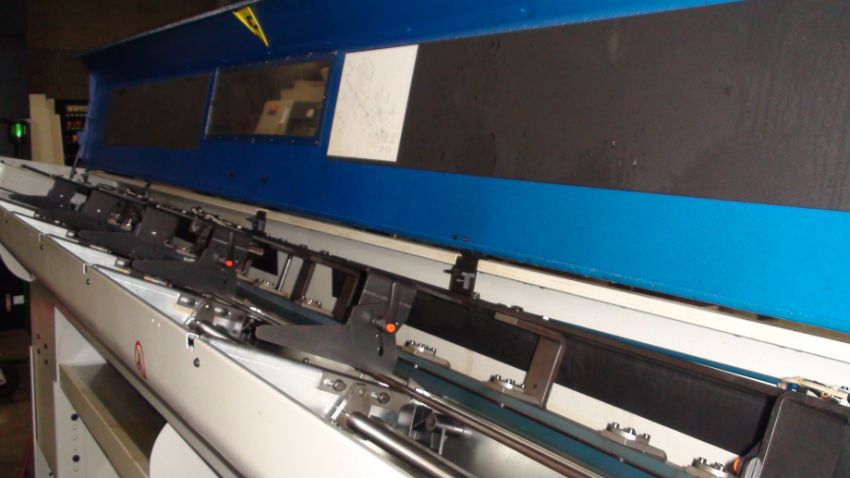

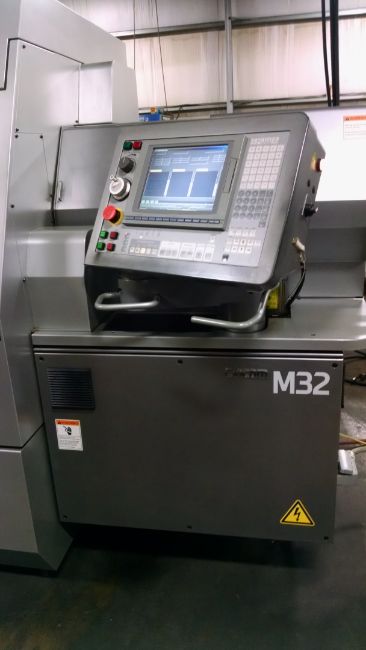

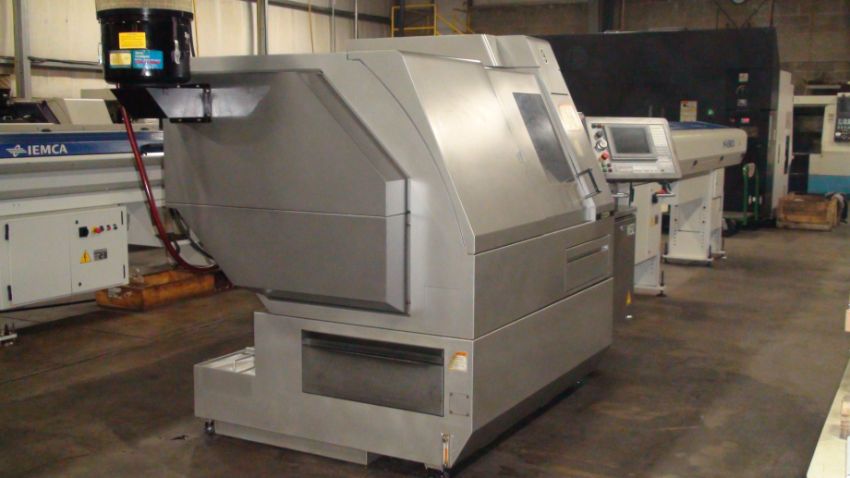

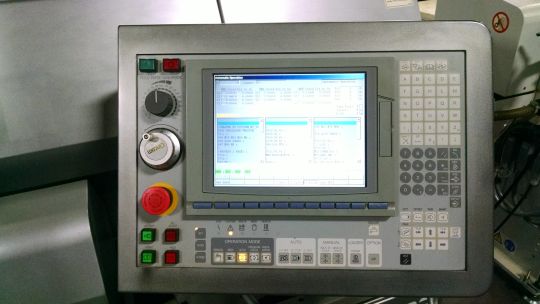

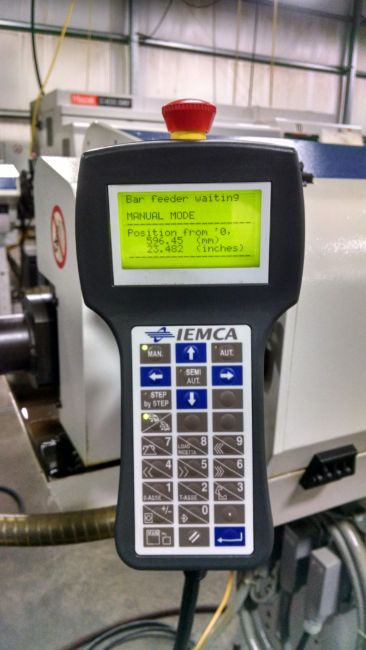

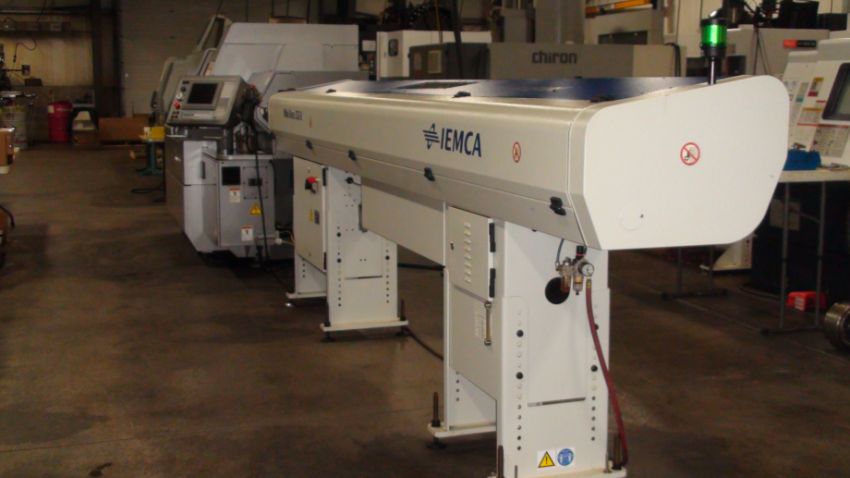

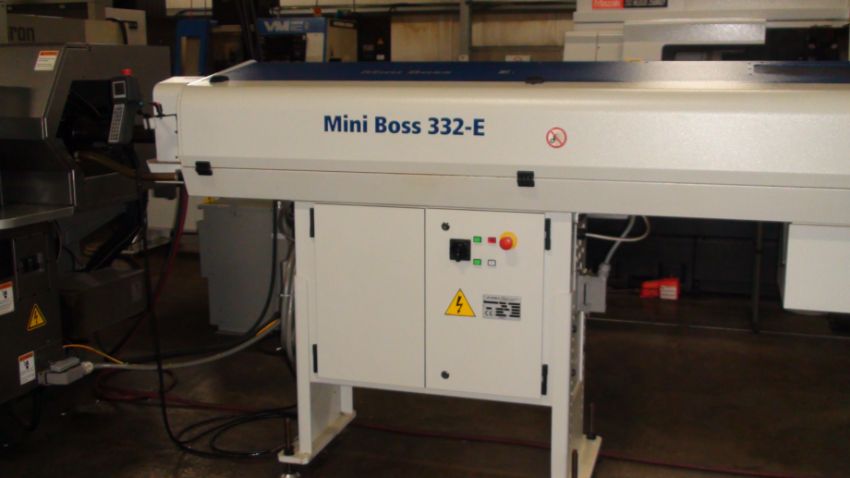

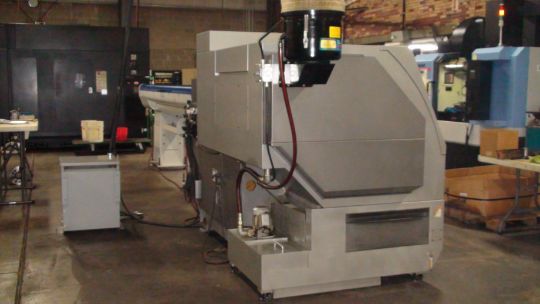

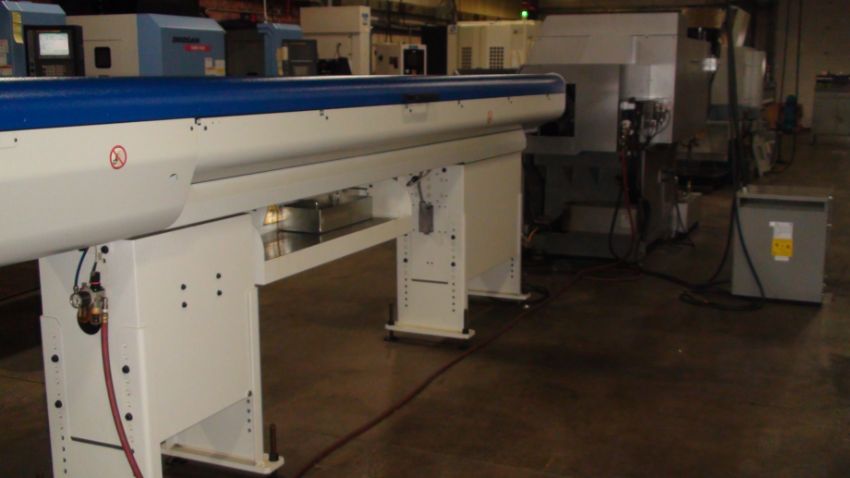

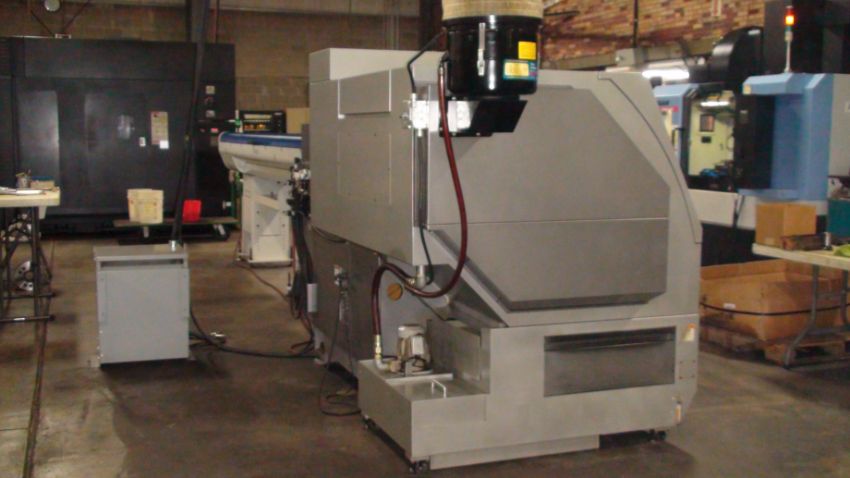

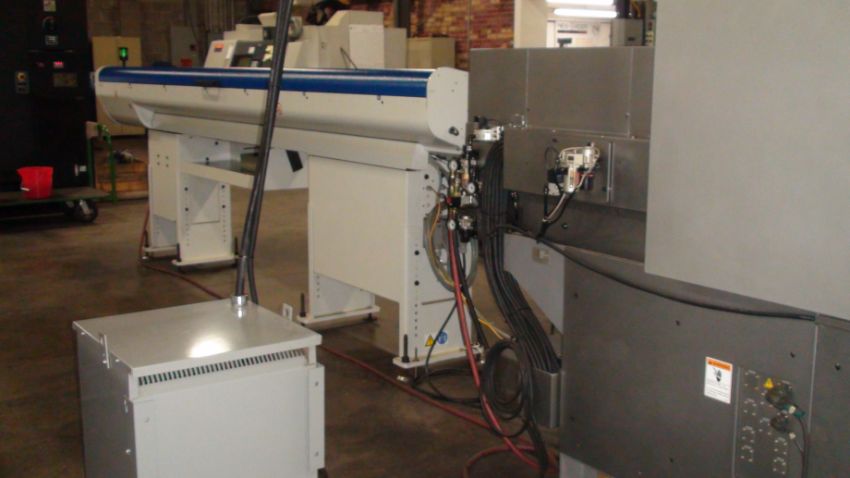

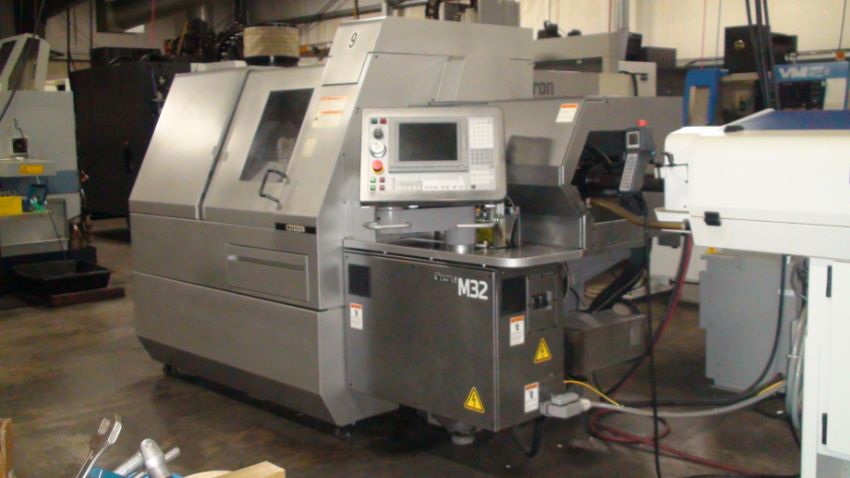

2007 Citizen Cincom M32V High Level Swiss Automatic Turning Center, S/N P16082, MFG No. MCL2032 / 1441, 14-Axis Simultaneous Cincom M6D System, Standard 9 Cutting Axes (X1, Z1, Y1, C1, X2, Z2, Y2, X3, Z3), One Optional (C2) & Four Miscellaneous Axes (A1, A2, A3 and T1),Multi Line Multi Axes Programming with Superimposed and Synchronized Control, 10-Station Turret (1/2 Index 20 Position), Main Spindle Speed 200~8,000 RPM with 4-Digit Stepless Command (10 H.P Peak/5 H.P. Cont), Back Spindle Speed 200~7,000 RPM with 4-Digit Stepless Command (5 H.P Peak / 2 H.P. Cont), Live Tool Spindle Speed 4-Digits Stepless Command (Gang Tool Post 200~5,000 RPM, Turret 200~5,000 RPM), 10.5″ Color LCD, Includes IEMCA Mini Boss 332-E Bar Feeder, Cutting Feed Rate 1-8,000 mm/min

Additional MFG Information and Operating Specs

Additional Info:

(3) Separate Tooling Stations, Each Station Capable of Servicing Differnet Areas Within The Citizen Machine. Three Tooling Staions Include: Turret, Gang Side, Fixed Sub Position.

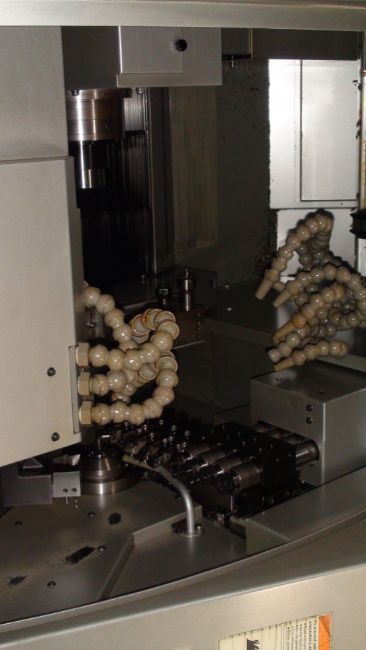

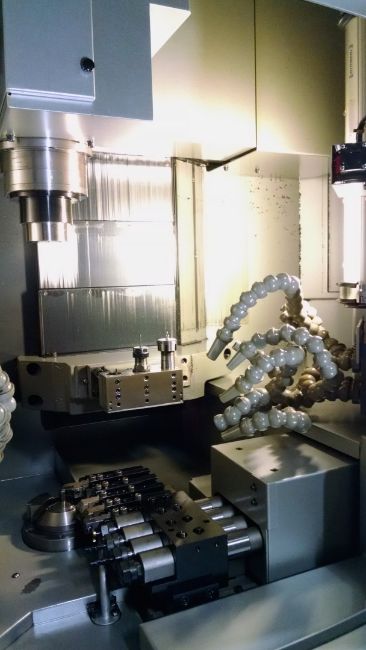

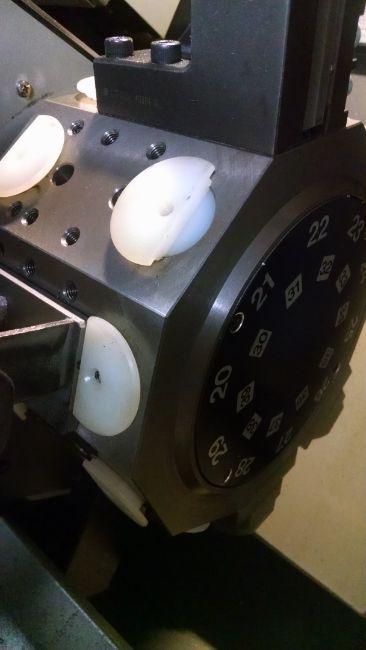

Turret - Capable of Holding Up to 30 live Tools - 15 Front Facing & 15 Back Facing in Either vertical or Horrizontal Position. Also Capable of Angeld Live and Fixed Tooling Heads in All Turret Positions. Turret Can Service Main Priamry Spindle as well as Secondary Spindle.

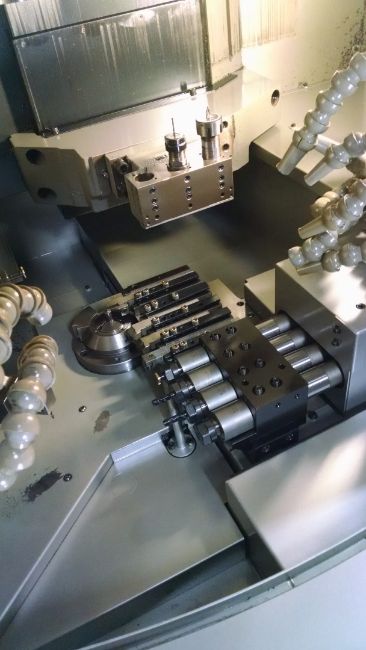

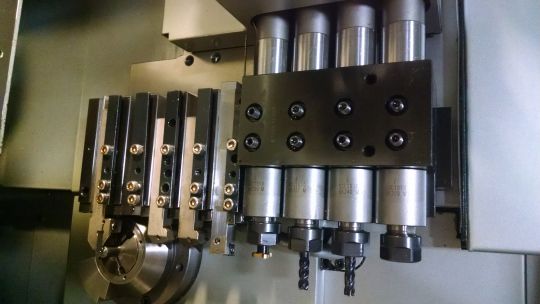

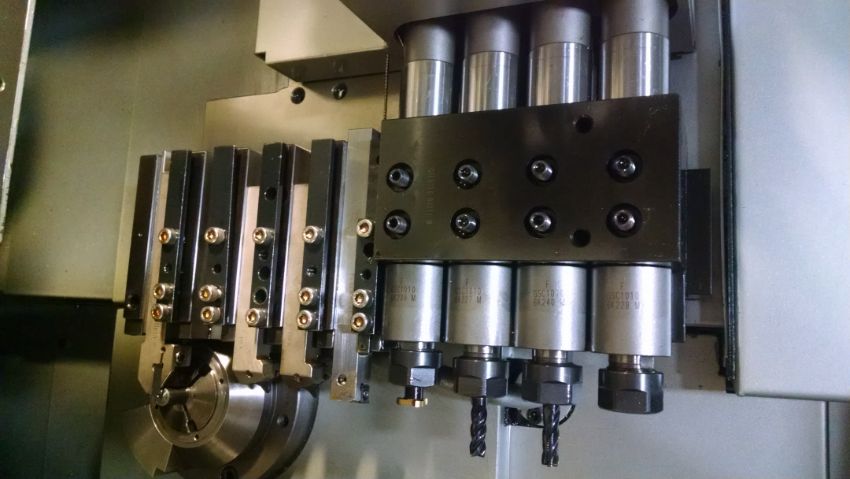

Gang Slide - Primary Station. Holds 5 Fixed Tools and 4 Live Tools. Services the Main Primary Spindle. Capable of Several Fixed Tools in Positions 1-5. Capable of Several Live Tools in Positions 6-9. Tooling Slide Allows Machine to do Basic to Extreme Machining Functions.

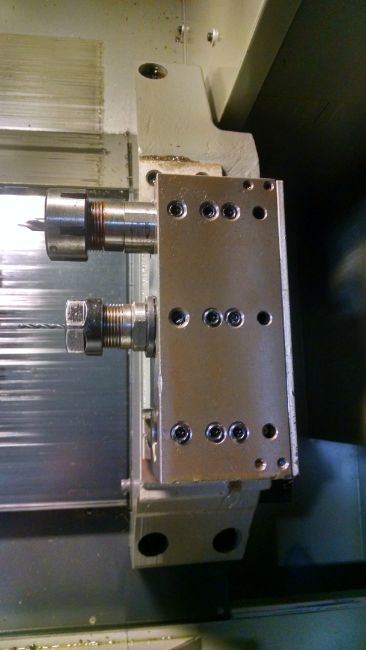

Fixed Sub Tool Postion - Used to Hold 3 Separate Fixed Tools. Serves as a Secondary Spindle. Capable of Machining Parts while they are in the Secondary Spindle while Gang Tool Slide is Serving Primary Main Spindle

Surplus to Ongoing Operations of a Major Arms Manufacturer: Cincom M32V Automatic Turning Center
